Aeration Compressor Cabinets

The cabinet that houses the compressor in the aeration systems is a crucial part of the system. Heat is the largest enemy of the compressors and could short the life of the compressor considerably. The second part of the cabinet it to weather proof the motor of the aeration system. A good cabinet should have a cooling fan installed to provide moving air over the compressor. The cabinets below also have an outlet to plug in the fan and aeration compressor. Locking cabinets are great for tamper proofing your system from mischief.

[wp_eStore_fancy10 id=208] roto-molded polyethylene cabinetThis roto-molded polyethylene cabinet is an economical alternative to the steel cabinets. Designed to hold air compressors up to the RV33  1/4 hp rotary vane) in size. The small foot print makes it easy to hide!
• Ideal for housing all linear compressors, DC22 (PA10), DC12 (PA12),
ERP25 (PA34), ERP50 (PA66) and RV33 (PA50)
• Roto-molded in a tan color which blends into existing landscape well Weatherproof Cabinets.
• Built in louver allows fresh air into cabinet, an optional cooling fan is recommended for large compressors or in hot locations, fan comes installed in second vent hole with louver. 15″ x 25″ x 15″h



SC18 and SC18G steel cabinetPost Mounted Lockable Cabinets
Top and front wall open for easy
access and service
• 111/2″ x 18″ x 111/2″ – will hold all linear compressors and the DC12, DC22, ERP25, ERP50 compressors
• 18 gauge galvanized steel with powder coat finish
• Three 11/4″ knock outs for airlines plus one for power source
• All cabinets come complete with mounting bracket and cooling fan
• Also available with a raised base for use on the ground when pole mounting is not an option.

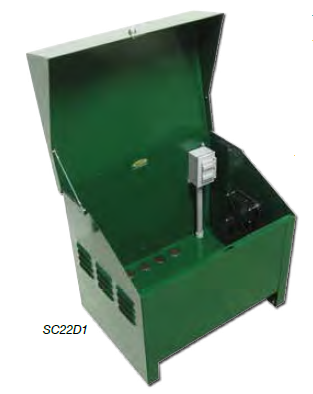

SC22D1 Deluxe lockable steel cabinetLockable Steel Cabinets Deluxe Cabinet:
• 161/2″ W x 22″ L x 19″ H – will hold all compressors up to RV100 or multiple smaller units with stainless steel lock to protect against vandalism
• 14 gauge galvanized steel with powder coat paint finish
• Includes compressor mounting base to keep compressor up off floor
• Tapered lid – makes front wall shorter allowing easier access to compressor
• Has six 11/4″ knockouts for airlines and one knockout for incoming power
• Cooling fan kits include fan, power cord, guard and hardware
• Electrical box has 1/2″ conduit plumbed through floor for easy wiring
• Electrical component kits include outlet, fittings and hardware

About the author: Darrell Rhoades is the founder of A one man business, works full time in tool & die. It all started when he built his own pond for the family. Ran into pond issues and started the research with pond suppliers and conferences for pond management. He writes about pond building and pond management and sells pond management supplies, aeration & fountains and Practical hands on experiences at . No physical store, but has items in stock.
