PS20

$1,899.99$2,499.99

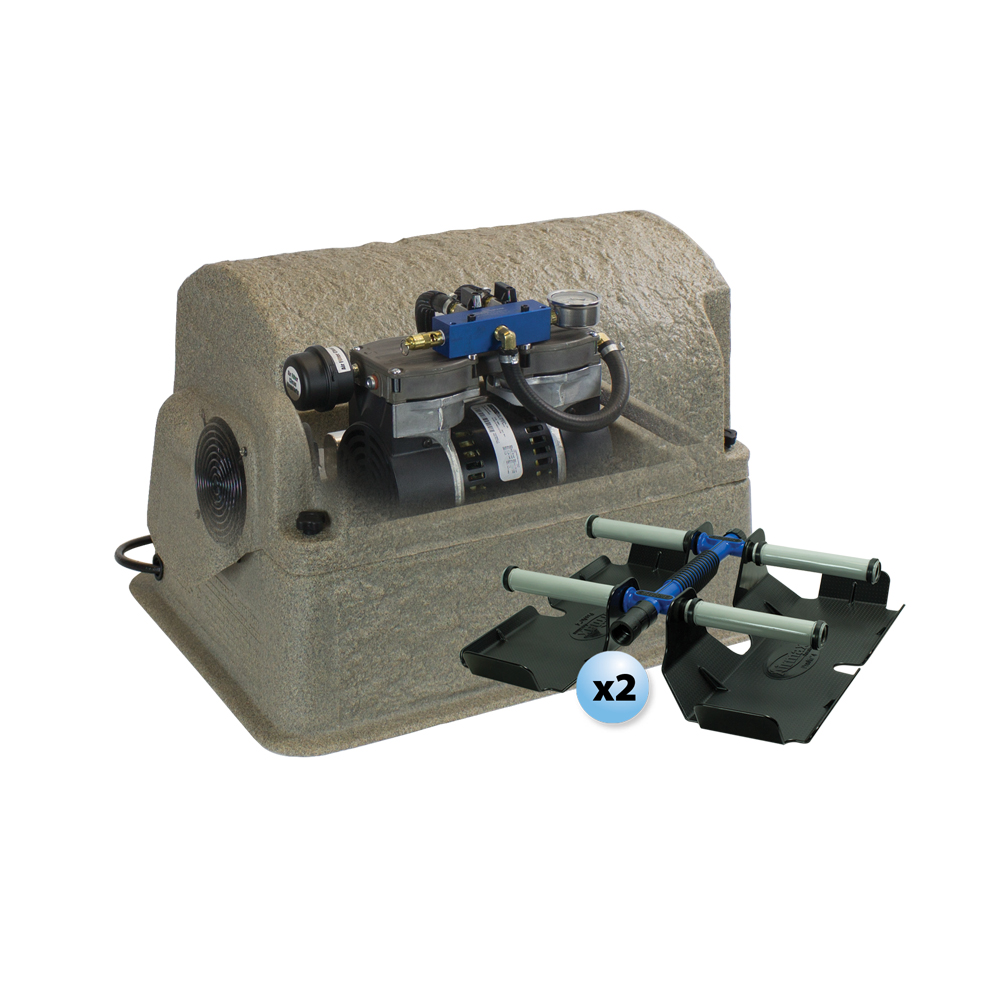

PS20 Aerate up to 2 Acres. Option for unit only, (Special order) unit with Diffuser(s) or Unit, diffuser(s) and 200′ Easyset weighted Airline tubing & voltage options. Read Specifications below.

Our most popular aeration systems, the PondSeries™ Aeration Systems are powerful enough to aerate ponds up to 4 acres and can be adapted to fit uniquely shaped ponds for maximum aeration. Diverse PondSeries™ systems make aeration a breeze. Our single plate PS10 system is excellent for smaller or regularly shaped ponds while the 4 plate PS40 tackles larger water bodies up to 4 acres, or ponds with an irregular shape that require precision plate placement for even circulation. All PondSeries™ Systems are designed to aerate pond up to 21′ deep, but can aerate up to 50′ deep when a deep water kit (sold separately) is added.

Airmax® Composite Cabinet

Our attractive composite cabinet houses and protects the SilentAir™ Compressor from outdoor elements. An integrated cooling system utilizes a ventilation fan with rain shroud and high-density air intake pre-filter to distribute air evenly throughout the cabinet keeping the interior components clean, cool and dry. An elevated base protects the aeration hardware and electrical components from flooding and rainwater accumulation while the removable top ensures quick and easy access for inspection and maintenance. Every Airmax® Composite Cabinet in our PondSeries™ comes complete with a pre-wired electrical box and 6 foot power cord to provide power to the enclosed cooling fan and aeration compressor. The Airmax® Composite Cabinet comes with a lifetime warranty on the cabinet and a 2-year warranty on electrical components.

SilentAir™ Series Aeration Compressor

The heart and soul of each PondSeries™ Aeration System, our powerful whisper-quiet SilentAir™ rocking piston compressors built with SmartStart™ Technology to protect the compressor during pressurized restarts following power supply interruptions. Each compressor pushes oxygen through your pond while remaining energy efficient – costing as little as $9.27 a month in electricity running 24/7. Each SilentAir™ aeration compressor is fitted with an integrated air regulator to provide easy airflow-management and is mounted on vibration reducing rubber feet to ensure quiet operation.

ProAir™4 Weighted Diffuser

Designed for maximum oxygen uptake, our ProAir™4 Weighted Diffuser incorporates high-efficiency low-maintenance membrane sticks to release tiny oxygen bubbles into the water column. Membrane diffusers posses the synergy of air stones without the headaches of cracking and acid-washing. The ProAir™4 Weighted Diffuser has an integrated check valve to prevent back pressure on the compressor. The innovative sled design keeps the ProAir™4 submerged while maintaining an upright position during installation. Comes with a 5-year warranty.

EasySet™ Airline

A thick wall and lead-free construction make EasySet™ airline the perfect pond-safe choice. Resistant to rips and tears, EasySet™ airline is resilient against fishing hooks and foot traffic from swimmers, pets and wildlife. The 3/8” & 5/8” Weighted Airline is designed to stay submerged underwater and out of sight and is guaranteed not to float. The 5/8” Direct Burial Airline comes with a 5-year warranty and is designed for underground use because of its resistance to crushing and deforming.

Provides Aeration For:
Up to 1/2 Acre……6′-9′ Deep
Up to 1 Acre……..9′-12′ Deep
Up to 2 Acres…..12′-21′ Deep

PS20 Specs

Max/Running Amps 4.1 or 2.1
Volts 115 or 230
Max CFM 4.7
Max Depth 21 Feet
Monthly Operating
Cost
$23.76
(Ran 24/7)

PS20 Contents
• (2) ProAir™4 Weighted Diffuser
• (1) Airmax® Composite Cabinet
• (1) NEW RP50 1/2 HP SilentAir™ Rocking Piston Compressor
• Choice of No Airline or 200′ of 3/8″ EasySet™ Weighted Airline

Recommended usage can be year round. Summer to provide water movement, bind phosphates to the bottom of the pond, oxygen to the bottom of the pond for more fish capacity, take away their stress, prevent fish kills and promote beneficial pond bacteria (aerobic bacteria ) to the bottom of the pond to reduce muck and nutrients.

Winter use is to keep a hole in the ice for off gassing of toxic gasses. Keep the pond breathing so the fish don’t suffocate under the ice.

Installation

Airmax Eco System

https://www.youtube.com/watch?v=gn9P_GKjvaM&width=640&height=480

Content 1

Description

Provides Aeration For:
Up to 1/2 Acre……6′-9′ Deep
Up to 1 Acre……..9′-12′ Deep
Up to 2 Acres…..12′-21′ Deep

Additional information

Weight N/A
Dimensions N/A
System Options

System Only, System w/ Diffuser(s), System w/ Diffuser(s) & Weighted Tubing

Voltage

115 volt, 230 volt
