Rotary Vane Aeration System PA50 Quarter Horse

$1,338.79$2,475.99

1/4 hp Rotary Vane Systems
• One year warranty on compressor, five year warranty on Quick Sink tubing and diffusers
• Coverage area based on diffusers in 5′ to 16′ of water, actual area will vary according to diffuser operating depth (18′ maximum operating depth)
• Typical operation cost of $1.31 per 24 hours (at .09¢ per kwh, actual cost will vary)

Clear
SKU: N/A Category:

Basic Systems

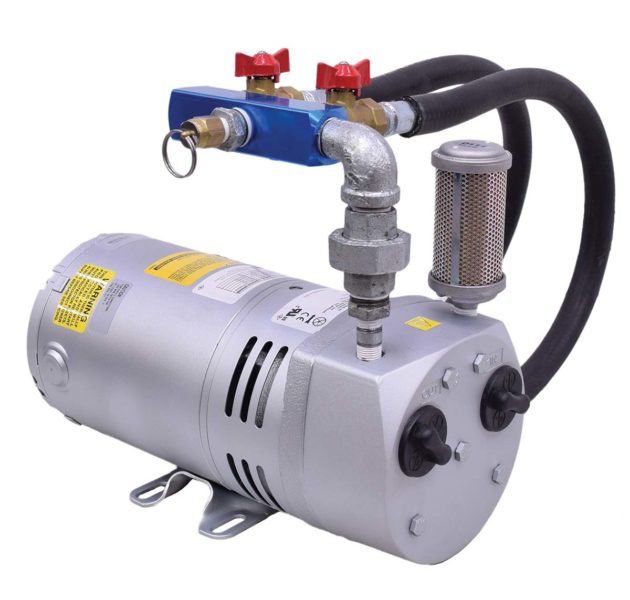

• PA50 Kit includes compressor, valved outlet assembly with pressure relief valve, 200′ of 1/2″ poly tubing, two EPMD2 air diffusers, fittings and clamps

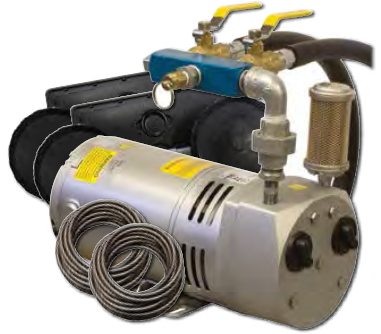

• PA50W Kit includes all the items above replacing the poly tubing with Quick Sink tubing
• PA50A The same kit as above without any tubing, buy poly or Quick Sink tubing as needed
• PA50WLD Kit includes compressor, valved outlet assembly with pressure relief valve, 200′ of 1/2″ Quick Sink tubing, fittings and clamps

Deluxe Systems
1 Year Warranty on Compressor
5 Year Warranty on Tubing, Diffusers and Cabinet

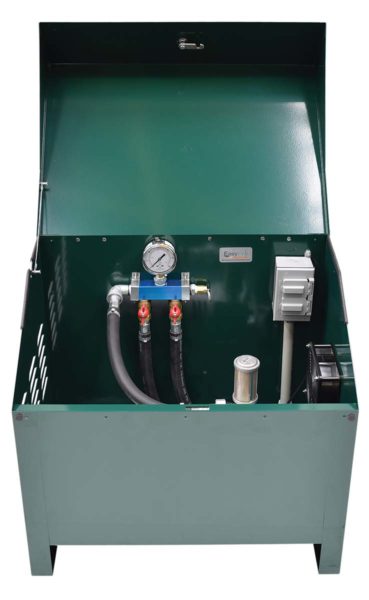

• Each package includes our deluxe locking cabinet complete with air compressor already installed, a cooling fan already installed and a electrical box/outlet already mounted and ready for your incoming power line
• Every compressor has a valved outlet assembly, a pressure relief valve and a pressure gauge installed — simply set cabinet in desired location, install the air diffusers and connect the tubing
• 18′ maximum operating depth
• Dual voltage motors ship 115v unless specified 230v

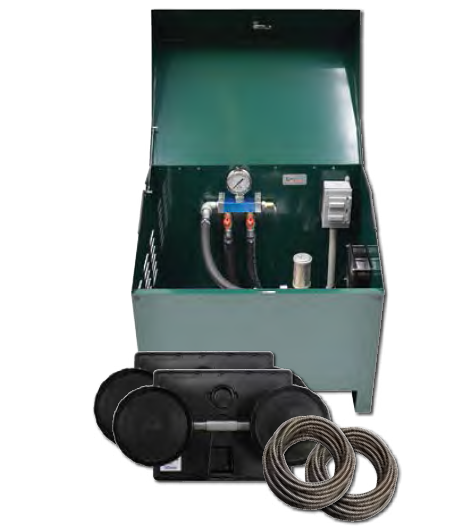

• PA50D Deluxe kit includes SC22 deluxe locking cabinet with compressor, cooling fan, electrical box, valved outlet assembly, pressure relief valve and pressure gauge installed, 200′ 1/2″ Quick Sink tubing, two EPMD2 air diffusers, fittings and clamps
• PA50AD Deluxe kit includes SC22 deluxe locking cabinet with compressor, cooling fan, electrical box, valved outlet assembly, pressure relief valve and pressure gauge installed, two EPMD2 air diffusers, fittings and clamps
• PA50DLD Deluxe kit includes SC22 deluxe locking cabinet with compressor, cooling fan, electrical box, valved outlet assembly, pressure relief valve and pressure gauge installed, 200′ 1/2″ Quick Sink tubing, fittings and clamps
• PA50ADLD Deluxe kit includes SC22 deluxe locking cabinet with compressor, cooling fan, electrical box, valved outlet assembly, pressure relief valve and pressure gauge installed, fittings and clamps

All kits come standard 115v. Motors are dual voltage and can be easily field changed or we will ship 230v if noted at time of order (230v units ship with bare leads – no plug).

1/4 HP SYSTEM AERATES UP TO:
1/2 acre at 5′-8′ deep
1 acre at 8′-12′ deep
2 acres at 12′-16′ deep



Here’s a PA66 up and running with three diffusers on a one acre pond.



Additional information

WeightN/A
System Options

PA50, (2) EPMD2, 1/2" Poly* 200', PA50W, (2) EPMD2, 1/2" Quick Sink 200', PA50A, (2) EPMD2, NO tubing, PA50WLD, NO diffusers, 1/2" Quick Sink 200', PA50D, (2) EPMD2, 1/2" 200' SC22 cabinet, PA50AD, (2) EPMD2, NO tubing, SC22 cabinet, PA50DLD, NO diffusers, 1/2" 200' SC22 cabinet, PA50ADLD, NO diffusers or tubing, SC22 cabinet
