PA66 1/2 Hp Rocking Piston Systems

2014 Lake&Pond.indd Aerates up to 3 acre Ponds, Basic to Deluxe 1/2 HP systems on this page.
• Two year warranty on compressor, five year warranty on tubing, diffusers and cabinets.
• 1/2 HP produces 5.2 cubic feet per minute.

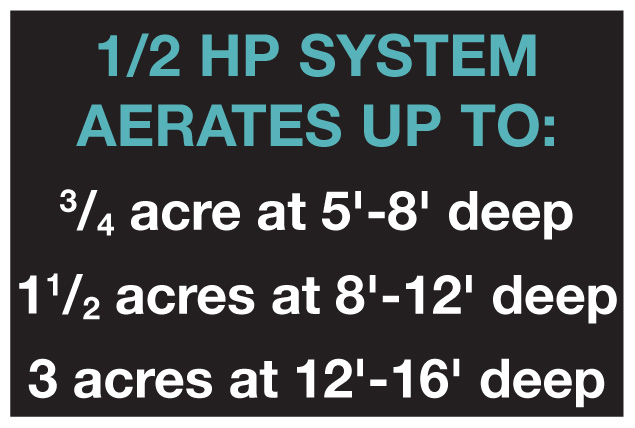

• Coverage area based on diffusers in 5′ to 16′ of water, actual area will vary according to diffuser operating depth
• Typical operation cost of $1.00 per 24 hours (at .09¢ per kwh, actual cost will vary)

These Aeration Systems are designed as a Basic version where you would provide a cabinet to protect the compressor to Deluxe version which includes a choice of cabinet. Other options are No weighted airline, for designing custom lengths and No diffusers in case you choose a different brand or style of diffuser.

2014 Lake&Pond.inddFrom Basic Systems to two different Deluxe cabinet options as seen below the PA66, 1/2 Hp aeration system offers different ways to fit your needs in building your aeration system. As a precaution statement, the Basic systems, (no cabinet) the compressor does need to be protected from weather, rain and snow and needs to be able to breathe having air holes for air flow to keep the compressor cooled off. Southern states with long hot summers should look to the different cabinets which have a fan installed in the cabinet to keep the compressor cool. While the northern states may not need the fan we still need air flow to cool the compressor and for the air intake that goes through the compressor out to the diffuser (s).

With the different options to order below you will see options like 2 diffusers and no air line. We can help design and figure out how any feet of tubing you will need if you choose this option. Please let us know in advance before ordering. Another option is with no diffuser in case you have a different diffuser to use or replacing a system you already have. You’ll also see below the option to add sound proofing to your system, if you wish to order, click the add to cart along with your choice of system.

When in doubt please use the contact page so we can help get the correct sized system for your pond needs.

[wp_eStore_fancy1 id=261] [wp_eStore_fancy1 id=262] [wp_eStore_fancy1 id=260] [wp_eStore_fancy1 id=207] [wp_eStore_fancy1 id=248] [wp_eStore_fancy1 id=242] [wp_eStore_fancy1 id=243] [wp_eStore_fancy1 id=244]

• Each package includes our deluxe locking cabinet complete with air compressor already installed, a cooling fan already installed and a electrical box/outlet already mounted and ready for your incoming power line
• Every compressor has a valved outlet assembly, a pressure relief valve and a pressure gauge installed — simply set cabinet in desired location, install the air diffusers and connect the tubing
• 50′ maximum operating depth

PA66DP Deluxe kit includes SC18 deluxe locking cabinet with compressor, cooling fan, electrical box, valved outlet assembly, pressure relief valve and pressure gauge installed, 300′ 3/8″ Quick Sink tubing, three EPMD2 air diffusers, fittings and clamps

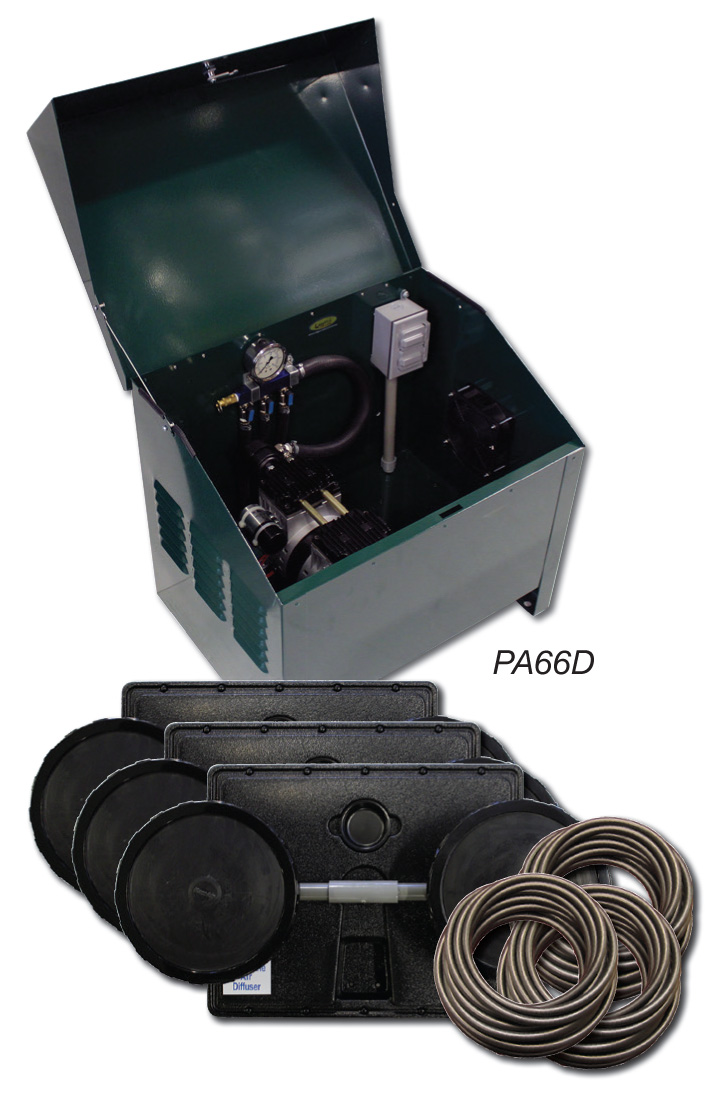

PA66D Deluxe kit includes SC22 deluxe locking cabinet with compressor, cooling fan, electrical box, valved outlet assembly, pressure relief valve and pressure gauge installed, 300′ 3/8″ Quick Sink tubing, three EPMD2 air diffusers, fittings and clamps.
PA66AD Deluxe kit includes SC22 deluxe locking cabinet with compressor, cooling fan, electrical box, valved outlet assembly, pressure relief valve and pressure gauge installed, three EPMD2 air diffusers, fittings and clamps, and NO tubing.

Cabinets in the Deluxe systems are complete with cooling fan, and electrics for the compressor. The choice of cabinets are a post mount cabinet (SC18) which mounts on a 4×4 to keep it off the ground or the SC22 cabinet which sits on the ground. Personal thought is if you are in a flood prone area the post mount would be ideal to keep the compressor up and out of harms way.













About the author: Darrell Rhoades is the founder of Whatpond.com. A one man business, works full time in tool & die. It all started when he built his own pond for the family. Ran into pond issues and started the research with pond suppliers and conferences for pond management. He writes about pond building and pond management and sells pond management supplies, aeration & fountains and Practical hands on experiences at Whatpond.com. . No physical store, but has items in stock.
